Angles, End Lugs & Clevis Mounted Cylinders


Angles, End Lugs & Clevis Mounted Cylinders

1.5" to 12" Bore

HEAVY DUTY HYDRAULIC

Foot mounted cylinders are mounted to the bottom, side or end of the head or cap. Foot mounts must operate at lower pressure on large bore or long stroke cylinders. Clevis mounted cylinders are required when a load must move through an arc. Clevis cylinders may need to be de-rated or used with stop tubes for long stroke applications, especially without a guided load.

Feature

  • Thrust up to 45,000 lbs
  • Urethane rod wiper, with Viton and metallic options
  • Polyurethane rod seal, with Viton option
  • Buna Nitrile end seals
  • Standard Buna-N piston lip seals, with optional T-seal
  • Bronze-filled PTFE wear strip for lip seal pistons, glass-reinforced nylon for T-seal pistons
  • Captured solid 660 bronze bearing
  • Steel head and cap
  • Stress proof 4140 steel tie rods
  • Hard-coated aluminum barrel for air, chrome-ID steel barrel for medium duty hydraulic
  • Optional adjustable cushions

Specifications

  • Bore sizes: 1.5" to 12"
  • Configuration: Single or double rod
  • Rods from 5/8" to 5" diameter
  • Max 250 PSI for air
  • Max 1500 PSI for hydraulic (less for larger bores)
  • Stroke range: Up to 144"

Angles, End Lugs & Clevis Mounted Cylinders

NFPA STYLE MS1


Side End Angle Mount. A fixed mount with force transferred in a straight line. Force is not absorbed along the cylinder centreline. As with most side mount cylinders, MS1 mounts create a rotating moment, requiring a minimum stroke length equal to their bore size. The MS1 is the weakest side mount, and should be limited to less than 500 PSI.

Get a quote

Angles, End Lugs & Clevis Mounted Cylinders

NFPA STYLE MS7


End Lug Mount. A fixed mount with force transferred in a straight line. Force is not absorbed along the cylinder centreline. As with most side mount cylinders, MS7 mounts create a rotating moment, requiring a minimum stroke length equal to their bore size.

Get a quote

Angles, End Lugs & Clevis Mounted Cylinders

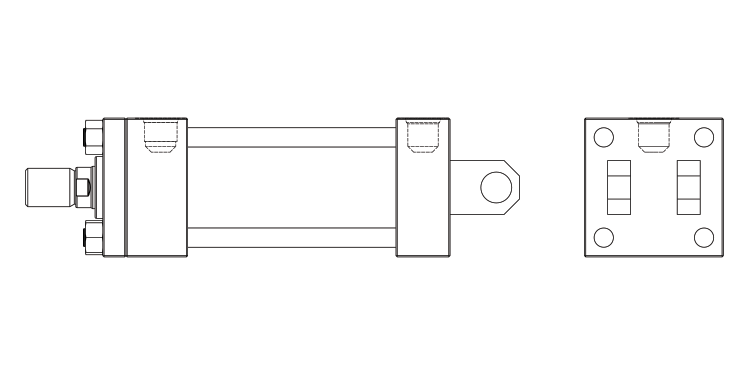

NFPA STYLE MP1


Fixed Cap Clevis Mount. Allows for changes in cylinder alignment. Forces are absorbed along cylinder centreline. A pivot pin of adequate strength must be used to resist shear load. On long stroke cylinders, oversized rod or stop tube may be required to prevent rod buckling.

Get a quote
